The advantages of the NPP outdoor applications in the DOOH


With the rapid development of the NPP outdoor for the DOOH for advertisement has been widely applied in the culture square, hotel, school, university ,shopping mall and sports etc.


Compared with the traditional outdoor led display there are advantages of the NPP outdoor products:


1) high-definition image quality,


2) high brightness with 4000 nits to 6000 nits ,


3) IP67 standard and moisture-proof


4) Fast heat dissipation


5) low power consumption,


6) high color saturation with excellent pictures quality,


7) long life spam


With the combined applications of screen interactive technologies such as infrared sensing, facial recognition, 3D, VR/AR, etc., outdoor NPP products have become more vivid and specific. Under the support of these interactive technologies, the future prospects of NPP outdoor will be very promising.

Consult us
  • Product Details
  • Product parameter
  • References
  • Product Scene


Model P2.6 P2.9 P3.9 P6.2
Pixel Pitch(mm) 2.68mm 2.97mm 3.9mm 6.25mm
Module Size(mm) (H x V) 250x250
Installation Floor fixation / Wall mounted

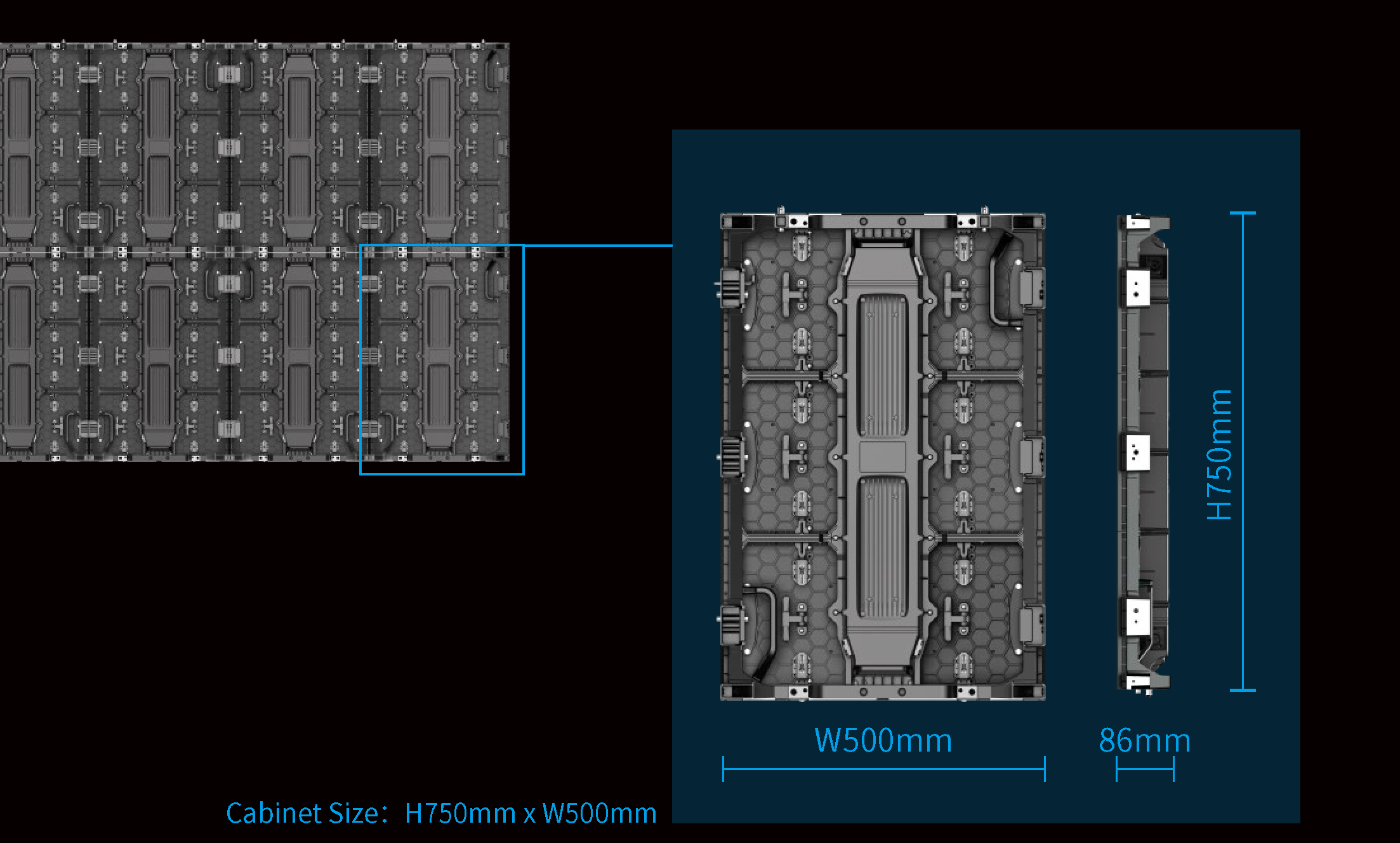

Cabinet Size(mm) (H x V) Small cabinet: 500mm×500mm×86mm
Large cabinet: 500mm×750mm×86mm
Cabinet Material Die-casting Aluminum
Cabinet Weight (kg/pcs) Small cabinet: 7.8kg/Large cabinet: 11.3kg
IP Rating IP67
Brightness  6000 nits (White Face LED)
 4000 nits (Black Face LED)
Grey Scale(bits) 13-14bit (Adjustable
Refresh Rate(Hz) ≥3840 Hz
Input Voltage 100-240V~, 50/60Hz
Max. power consumption ≥750W/m² (White Face LED) ≥680W/m² (White Face LED) ≥680W/m² (White Face LED)
≥920W/m² (Black Face LED) ≥900W/m² (Black Face LED)
Working Humidity  5%~95%RH, no condensing
Working Temperature  -40℃ ~ +60℃
Storage Humidity 5%~95%RH, no condensing
Storage Temperature -40℃ ~ +60℃
Certification  CE (Class A), FCC (Class A), ETL, CB

The above technical parameters are default values and could be customized according to customer's actual requirements

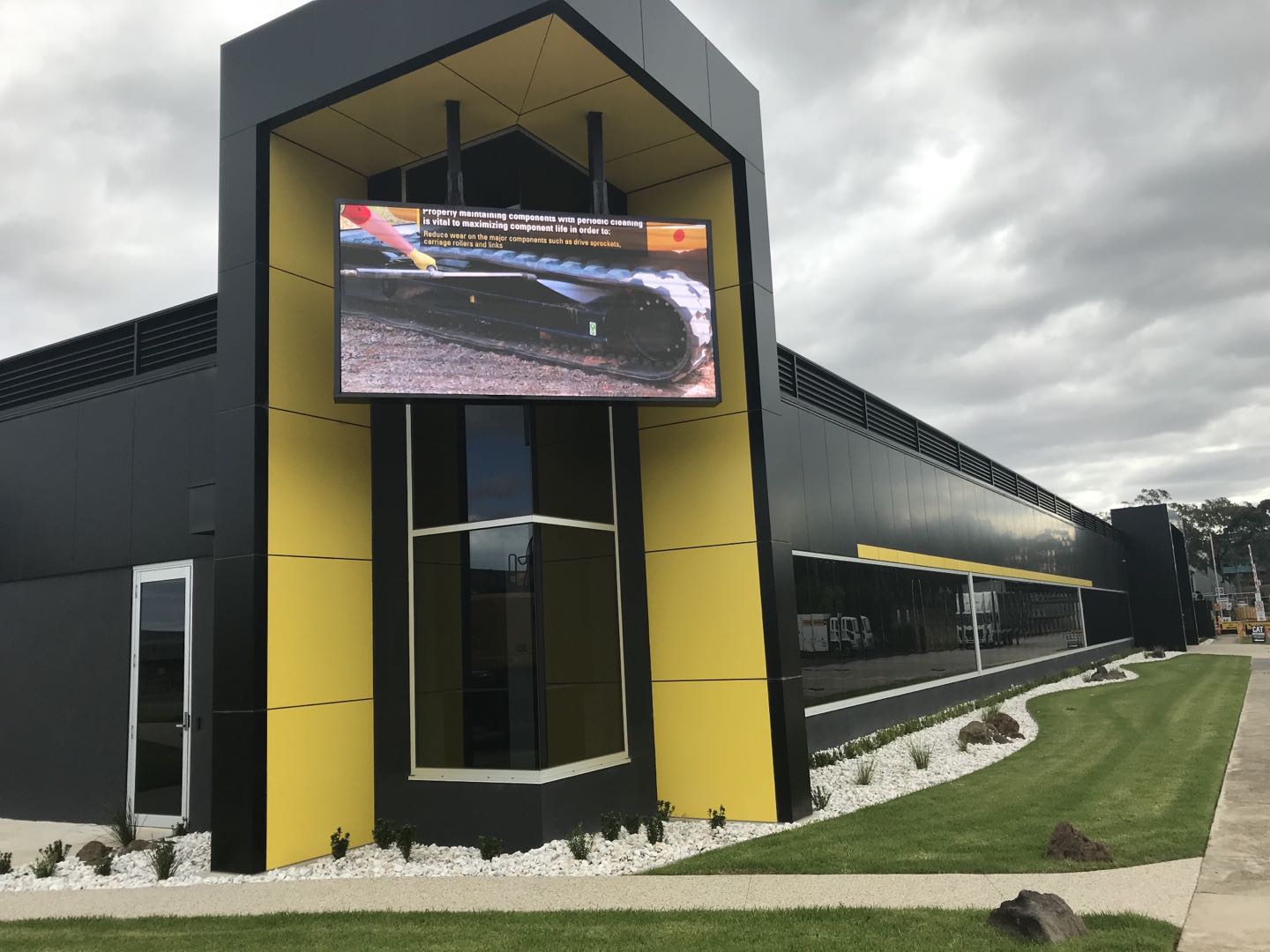

p3.125 outdoor 02.jpg
