All in one
The applications of NPP all in one for All in one The Characters of the All in one in its applications
1.Highly Integrated Design, Audio-visual All-in-one display
Built-in high-quality audio system tuned by professional sound engineer and upgraded audio analytic algorithm provides the audience with immersive all-round enjoyment.
2.Elegant & Beautiful Product Appearance outlook
With the Fabric Cover /Sound Filtering & Dustproof /Adaptive Brightness /Type-C Port
High integration both on hardware and system control can ensure the more stable operation.
3.Industry-level System, Reliable and User-friendly Operation
Built-in Meeting Software | Self-developed Apps | Screen Control via Mobile Devices
Industry-level system brings stable and reliable product performance.
Control function via mobile devices makes interaction more efficient.
4.HD Image Display, Versatile Application Modes
4K@60Hz high gray scale level under low brightness | Various Scene Modes
Ultra-HD display effect ensures perfect watching experience without missing one detail. Built-in video processing function supports multi-window display and switch.
For this moment we provide the size for:
108 “135” and 162” for options
| Product model | 138" | 168" | 220" | 135" | 162" | 216" |
| Product Type | SMD | GOB | ||||
| Size(inch) | 138 | 168 | 220 | 135 | 162 | 216 |
| Pixel Pitch(mm) | 1.5 | 1.9 | 1.2 | 1.5 | 0.9 | 1.2 |
| Overall Dimension(mm) | 3080x1840x28' | 3690x2183x28' | 4910x2869x28' | 3030.8x1812.9x31' | 3630.8x2150.4x31' | 4830.8x2825.4x31' |
| Net weight(kg) | 122 | 172 | 296 | 110 | 155 | 285 |
| Average power consumption(kw) | 0.521 | 0.731 | 1.514 | 0.483 | 0.647 | 1.158 |
| Maximum power consumption(kw) | 1.738 | 2.438 | 5.046 | 1.46 | 2.154 | 3.858 |
| Resolution | 1920x1080 | 1920x1080 | 3840x2160 | 1920x1080 | 3840x2160 | 3840x2160 |
| Contrast | 6500:1 | 15000:1 | ||||
| Grayscale | 14bit | 13~16bit | ||||
| Speaker unit | 4 full range units + 2 low frequency units | |||||
| Speaker maximum power | 120w | |||||
| Max. sound pressure level | 95dB | |||||
| Audio frequency domain | 60Hz~20kHz | |||||
| Refresh Rate | 3840Hz | |||||
| Brightness | 100~600cd/㎡(Adjustable) | |||||
| Viewing Angle(H/V) | 160°/140° | 165°/165° | ||||
| Input and output interface | Input：HDMI2.0 *1、HDMI1.4 *3、USB2.0 *1、USB3.0 *2、Type-C *1、POE *1、RJ45 *1、3.5mm Audio in *1、RS232 *1 Output：HDMI2.0 *1、3.5mm Audio out *2、USB *1 | |||||
| Operating system | Android13.0，8G + 64G，Cortex-A76 ×4 + Cortex-A55 ×4 Optional Windows System | |||||
| Cabinet material | Die-casting magnalium | |||||

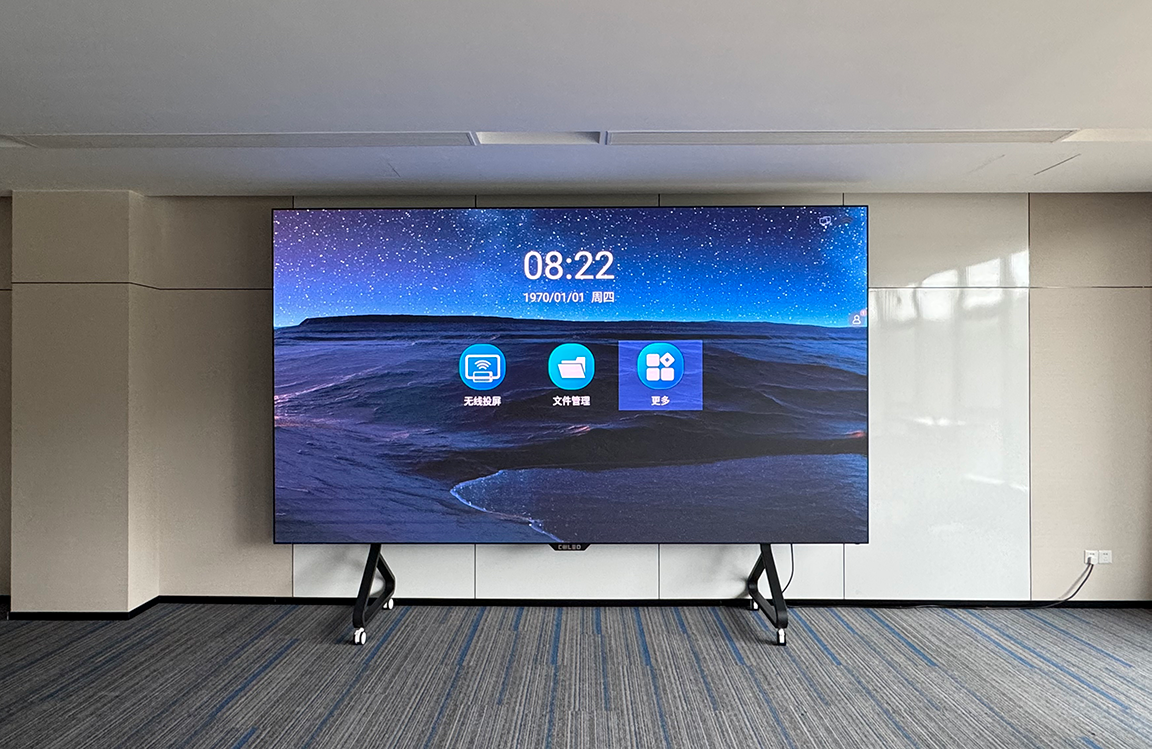

| Installation method | Mobile Stand , Wall mounting, Ceiling-hanging | |||||
| Maintenance method | Front-maintenance | |||||
| Recommended viewing distance(m) | ≥3.2 | ≥3.8 | ≥5.0 | ≥3.2 | ≥1.9 | ≥2.5 |
1）All in one with 138" in the LED exhibition
2)All in one with 110'' for office

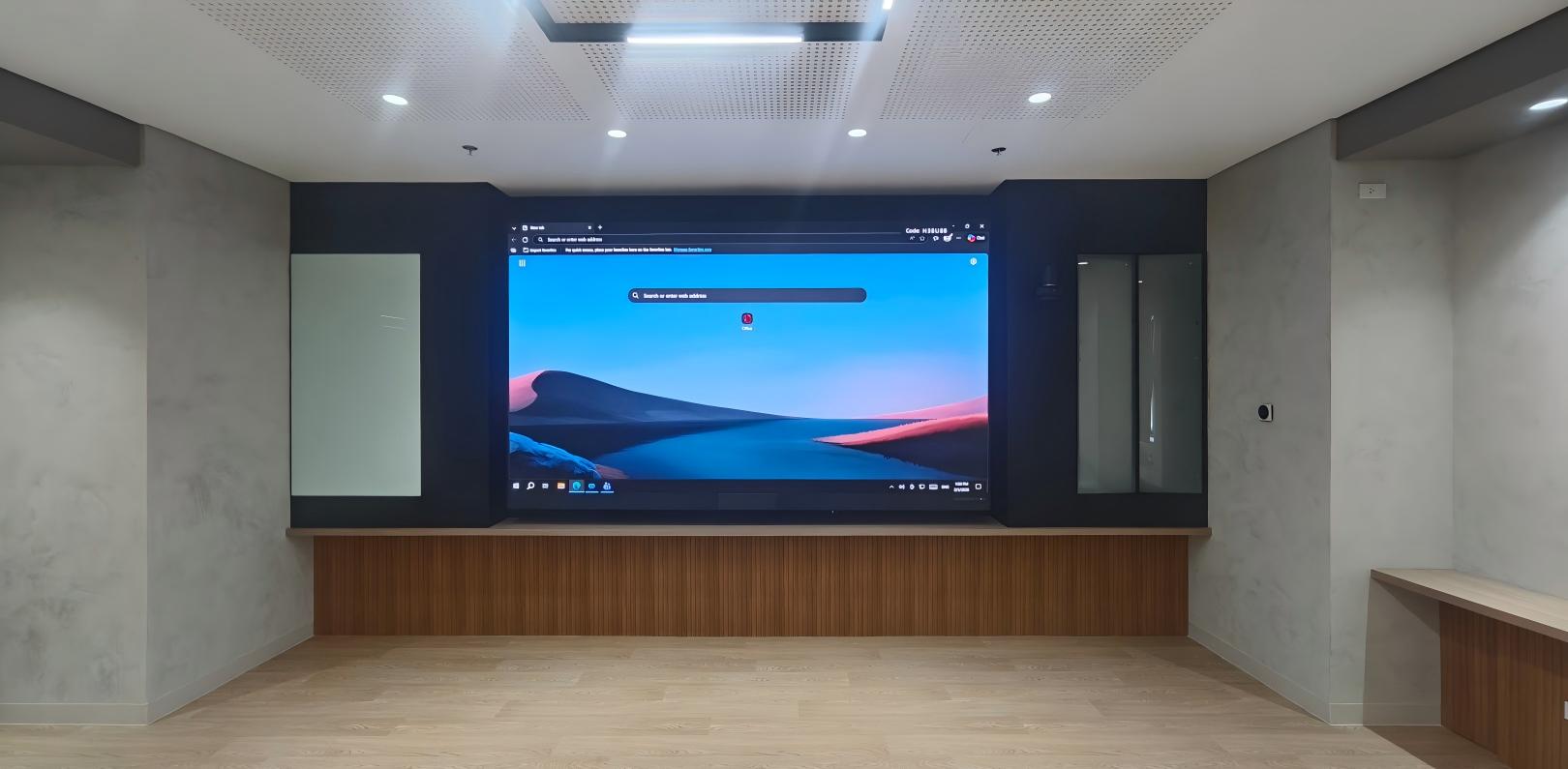

3)All in one with 138''for college
4)All in one with 163'' for University
5）All in one with 163'' for meeting room
6）All in one with 135'' for lobby
7) All in one with 138'' for Home theater
